ED5200系列​

單機式光放大器

在有線寬頻服務裡,信號由機房送至客戶端或反向傳回機房都藉由光纖網路與同軸網路來完成。信號在同軸網路上傳輸時強度因銅線衰減的特性會逐漸變弱,為了延續信號的傳遞必需以高輸出高品質的射頻放大器來補足信號的強度。

高品質的射頻放大器,主要的功能為:

  • 網路射頻電子訊號等化調整

  • 射頻電子訊號放大及頻率強度匹配

  • 主幹線訊號中繼長距離傳送

  • 高強度訊號多路延伸分配

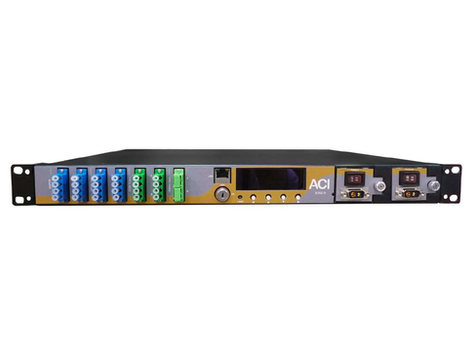

ED5229GT-E/GTRE Series
EDFA Optical Booster
GPON EDFA with WDM for IP (OLT) wavelengths Multi Optical Outputs
(With Pluggable Cooling fans, fan speed monitoring & alarm / for Outdoor Cabinet Environment)

The ED5229GT-E / GTRE Series is a high-power multi-ports EDFA optical booster with gain spectrum bandwidth from 1545 to 1563 nm for the HFC network. It is designed for the amplification of 1550nm single channel or multi-channel wavelengths (ITU wavelength) with WDM for IP (OLT) signal overlay. The integrated WDM devices are used for combing GPON (IP) signal wavelengths of 1310nm (upstream) & 1490nm (downstream) with a 1550nm broadcasting signal in the same fiber. The ED5229GTRE model has an additional built-in optical receiver for directly monitoring the 1550nm signal. The units are specially designed with ruggedized components for operation from -5°C to +65°C which is suitable for both indoor and outdoor cabinet environments. The ED5229GT-E/GTRE has a very compact by design that includes pluggable cooling fan modules on the sides with fan speed monitoring and fan failure alarms. The pluggable power supply modules have on/off switches on the front panel. All-optical connectors are positioned at a 60-degree angle to the front panel surface for easy fiber routing. It provides full front-panel access functions including the power supply connections. It is 2 RU in height and by using mounting adaptor brackets it will work on either a 21” and 23” rack and can be installed vertically or horizontally. This series of EDFA offers a flexible solution for broadcasting large area coverage of metropolitan and medium-sized cities.
The ED5229GT-E/GTRE EDFA adopts the world’s top-class pump lasers and the American brand OFS’ erbium-doped optical fiber. Perfect APC control, excellent design in the ventilation and efficient heat-dissipation ensure the long life and high reliability of the product. The pump laser will switch off automatically if the input optical signal power is too low or missing, which offers safety protection for the lasers. The LCD display and LED indicators on the front panel provide system information, real-time monitoring and alarm functions for operating this equipment. A RS232 interface is available for controlling the unit from a remote PC by a GUI software. Network management via SNMP protocol is possible using the RJ-45 port on the front panel.
  • Operation temperature range: -5°C to +65°C (for outdoor cabinet environment)
  • 1545nm ~ 1563 nm operating wavelengths range
  • 32 combined output ports and 32 OLT input ports
  • All front panel access
  • Pluggable cooling fans on the side walls
  • Fan speed monitoring and failure alarm
  • All of the optical connectors are positioned at a 60° angle for easier fiber cable routing
  • Fits into a 19” 21” or 23” wide rack and can be mounted horizontally or vertically.
  • Low noise, high reliability
  • Precision APC control
  • Powerful RS232 supervisory instruction
  • Efficient space, flexible installation and easy operation
  • A high-performance optical output driver circuit and laser TEC to provide a highly reliable EDFA
  • A Built-in microprocessor allows the unit to monitor the system parameters
  • A pump laser auto shutdown function is available
  • The LED indicator on the front panel shows the alarm status
  • The LCD display on the front panel shows the system parameters
  • Support firmware upgrade download
  • Support SNMP for network management
  • 1550nm test port (for ED5229GTRE model only)

ED5229GT-E

ED5229GTRE

ED5229GT-E/GTRE Series Datasheet (PDF)

ED5229GP Series
EDFA Optical Booster
GPON EDFA with WDM for IP (OLT) wavelengths Multi Optical Outputs

The ED5229GP series is a high-power multi-ports EDFA optical booster with gain spectrum bandwidth from 1545 to 1563 nm for the HFC network. It is designed for the amplification of CATV 1550 nm single channel or multi-channel wavelengths (ITU wavelength) with WDM for IP(OLT) signal overlay. the integrated WDM devices are used for combing GPON (IP) signals of wavelengths 1310 nm (upstream) & 1490 nm (downstream) with 1550 nm CATV signal in the same fiber. This series of EDFA offers a flexible solution for CATV large area coverage of metropolitan and medium-sized cities. The ED5229GP EDFA adopts the world’s top-class pump lasers and the American brand OFS’ erbium-doped optical fiber. Perfect APC control, excellent design in the ventilation and heat-dissipation ensures the long life and high reliability of the product. The pump laser will switch off automatically if the input optical signal power is missing, which offers safety protection for the laser. The LCD display and LED indicators on the front panel to provide system information, real-time monitoring and alarm functions for operating this equipment. An RS232 interface is available for controlling the unit from a remote PC by a GUI software. Network management via SNMP protocol is possible using the RJ-45 port on the
front panel.
  • 1545nm ~ 1563nm operating wavelengths range
  • 8, 16 , 32 or 64 port outputs (option)
  • Low noise, high reliability
  • APC control
  • Powerful RS232 supervisory instruction
  • Efficient space, flexible installation and easy operation
  • A high-performance optical output driver circuit and laser TEC to provide a highly reliable EDFA
  • A Built-in microprocessor allows the unit to monitor the system parameters
  • The pump laser auto shutdown function is available
  • The LED indicator on the front panel shows the alarm status
  • The LCD display on the front panel shows the system parameters
  • Support firmware upgrade download

ED5229GP-32 Ports

ED5229GP-64 Ports

ED5229GP Series Datasheet (PDF)

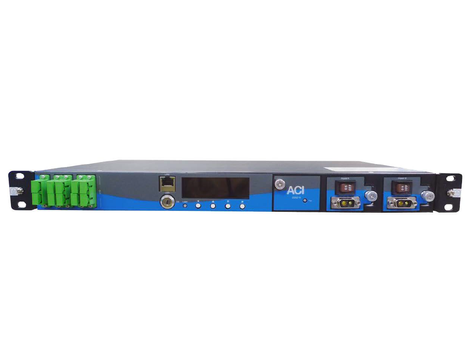

ED5229ST Series
Single Channel EDFA
CATV Single Channel EDFA (with Pluggable Cooling fans, fan speed monitoring & alarm / for Outdoor Cabinet Environment)

The ED5229ST EDFA operates at a constant output power mode, the single-channel EDFA designed to amplify channels in a wavelength range from 1545 nm to 1563 nm. The ACI ED5229ST EDFA is designed to operate in an outdoor cabinet environment with temperature from -5˚C to +65˚C. The monitoring, alarm functions, and system information are provided with the real-time display on the front LCD panel and LED indicators. RS232 interface for remote control is available, and RJ45 interfaces for SNMP management is available as an option. The unit is designed with ruggedized components for operation in the temperature range from -5˚C to +65˚C which is suitable for both indoor and outdoor cabinet environment. The ED5229ST has cooling fans on the side walls with fan speed monitoring and fan failure alarm. All of the optical connectors are positioned at a 60-degree angle to the front panel surface for easy fiber routing. The unit has full front-panel access functions including the power supply connections. The unit works for both a 19” or 21” rack by using a mounting adaptor and can be installed vertically or horizontally in the cabinet.
  • Operation temperature range: -5°C to +65°C (for outdoor cabinet environment)
  • All front panel access
  • Pluggable cooling fans on the side walls
  • Fan speed monitoring and failure alarm
  • All of the optical connectors are positioned at a 60° angle for easier fiber cable routing
  • Fits into a 19” or 21” wide rack and can be mounted horizontally or vertically
  • A high-performance optical output driver circuit and laser TEC to provide a highly reliable EDFA
  • A Built-in microprocessor allows the unit to monitor the system parameters
  • A pump laser auto shutdown function is available
  • The LED indicator on the front panel shows the alarm status
  • 1545nm ~ 1563nm operating wavelengths range
  • The LCD display on the front panel shows the system parameters
  • Support firmware upgrade download
  • Support SNMP for network management
  • 1, 4, or 8 output ports
ED5229ST Series Datasheet (PDF)

ED5219LGT Series
Single Channel EDFA
GPON EDFA with WDM for IP(OLT) Wavelengths Multiple Optical Outputs

The ED5219LGT series is a high-power multi-ports EDFA optical booster with gain spectrum bandwidth from 1545 to 1563 nm for the HFC network. It is designed for the amplification of 1550 nm single channel or multi-channel wavelengths (ITU wavelength) with WDM for IP (OLT) signal overlay. It has WDM devices integrated for combing GPON (IP) signals of wavelengths 1310 nm (upstream) & 1490 nm (downstream) with a 1550nm broadcasting signal in the same fiber. ED5219LGT series is also specially designed with ruggedized components for operation in the temperature range from -5˚C to +65˚C which is suitable for both indoor and outdoor cabinet environment. The monitoring, alarm functions, and system information are provided with the real-time display on the front LCD panel and web browser. RJ45 interfaces for SNMP management are also available, and the RS232 interface for remote control is also available (option). It provides fully front-panel access functions including power supply connections on the front panel. It is 1 RU in height and by using a mounting adaptor, it works for 19” racks and can be installed vertically or horizontally in the cabinet.
  • Operation temperature range: -5˚C to +65˚C (for outdoor cabinet environment)
  • All front panel access
  • Works for 19” and can be mounted horizontally or vertically
  • A high-performance optical output driver circuit and laser TEC to provide a highly reliable EDFA
  • A Built-in microprocessor allows the unit to monitor the system parameters
  • The LED indicator on the front panel shows the Laser diode on/off status
  • The LCD display on the front panel shows the monitor parameters
  • Support SNMP for network management
  • Optical Switch for 1550 nm signal source redundancy (optional)
ED5219LGT Series Datasheet (PDF)

ED5219CH Series
Single Channel EDFA
GPON EDFA with WDM for IP (OLT) Wavelengths Multiple Optical Outputs

The ED5219CH EDFA is operated on constant output power mode, single-channel EDFA designed to amplify channels in the wavelength range from 1540nm to 1560nm. The ACI ED5219CH EDFA has a maximum total output power as defined. The monitoring, alarm functions, and system information are provided with the real-time display on the front LCD panel and LED indicators. RS232 interface for remote control is available, and RJ45 interfaces for SNMP management is available by option.
  • A high-performance optical output driver circuit and laser TEC to provide a highly reliable EDFA
  • A Built-in microprocessor allows the unit to monitor the system parameters
  • The pump laser auto shut down function (optional)
  • The LED indicator on the front panel shows the alarm status
  • The LCD display on the front panel shows the monitor parameters
  • Support firmware upgrade download
  • SNMP for network management (optional)
  • Hot-swappable power supply module available (optional)
  • 1540nm ~ 1560nm operating wavelengths range
  • 1, 4, or 8 output ports
ED5219CH Series Datasheet (PDF)

ED5219LXGT Series
XGPON/GPON EDFA with WDM Multiple Optical Outputs

The ED5219LXGT-16 is a low noise, high performance, FTTP high power, multi-port optical amplifier for 1545 to 1563 nm. Each output port for optical amplifier has built-in WDM which makes installation easy. Each 1550 nm output optical port multiplexes with 1310/1490 nm (GPON) or 1270 nm/1577 nm (XGPON) data stream which reduces the number of components and improves the performance index and reliability of the system. The 5219 also has a built-in 2x1 optical switch option for 1550 nm input redundancy. ACI ED5219LXGT-16 optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for three-wavelength integration in a Fiber to the Home network.
  • Operation temperature range: -5˚C to +65˚C (for outdoor cabinet environment)
  • Compatible with 19” rack and can be mounted vertically
  • A high-performance optical output driver circuit and laser TEC to provide a highly reliable EDFA
  • A Built-in microprocessor allows monitoring of system parameters
  • The LED indicator on the front panel shows the Laser diode on/off status
  • The LCD display on the front panel shows the monitor parameters
  • Supports SNMP for network management
  • Optical Switch for 1550 nm signal source redundancy (optional)
  • All front panel configuration access
ED5219LXGT Series Datasheet (PDF)
