室外型射頻放大器
Outdoor Amplifier
MiniFlex Super Distribution Amplifiers
1218 MHz
MultiFlex-J (MDU) Amplifier
1.2 & 1.8 GHz
1002 MHz Amplifier
1 or 2 Output Line Extender
BLE
(1 Output Line Extender)
MB
(2 or 3 Output Mini Bridger)
RF Upgrade Modules
1218 MHz
ASEM™ Upgrade Replacement RF Modules 1002 MHz For C-Cor™/Arris®
AFM2-T / B
Compatible With Arris 901e FMB/FMT
AFM2-E
Compatible With Arris 900 Line Extender
AFM2-L
Compatible With Arris 331e Line Extender
SDA & ALX系列
室外型放大器
在有線寬頻服務裡，信號由機房送至客戶端或反向傳回機房都藉由光纖網路與同軸網路來完成。信號在同軸網路上傳輸時強度因銅線衰減的特性會逐漸變弱，為了延續信號的傳遞必需以高輸出高品質的射頻放大器來補足信號的強度。
高品質的射頻放大器，主要的功能為：
-
網路射頻電子訊號等化調整
-
射頻電子訊號放大及頻率強度匹配
-
主幹線訊號中繼長距離傳送
-
高強度訊號多路延伸分配

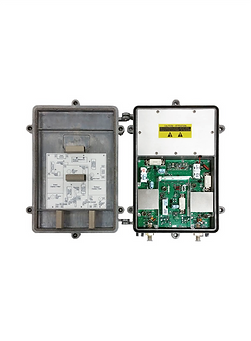

SDA 1.2G
MiniFlex Super Distribution Amplifiers 1218 MHz
The ACI MiniFlex Super Distribution RF 1.2 GHz amplifiers are designed to work up to a high forward output of 57 dBmV. The return bandwidth split can be easily changed from 42 to 85 or 204 MHz with the use of field conversion kits. ACI’s patented DSIM advanced technology keeps both the forward and return signals stable and reliable over extreme temperature swings. Having return band stabilization over temperature has become much more important as return band is increased to 204 MHz. Having the increased return gain of 28 dB enables these amplifiers to drop into existing designs from 750 MHz to 1 GHz.
-
1218 MHz may be dropped into the 750, 870 or 1002 MHz spacing
-
Easy upgrade to 85/105 or 204/258 MHz return bandwidth.
-
Common housing platform
-
-20.0 dB directional coupler test points
-
28 dB return gain
-
RoHS Compliant
-
Patented DSIM® Technology (smart, programmable AGC)
-
Increased reliability with higher surge protection
-
DSIM controlled return band AGC
-
Pad adjustable forward and return EQ’s
-
DSIM Android & Apple iOS setup applications
ASEM™ Replacement Upgrade RF Modules 1218 MHz
For GI/Motorola® BLE & MB
The ACI ASEM 1.2G replacement upgrade RF modules for the Moto BLE and MB are designed to
work up to a high forward output of 57 dBmV. The return bandwidth split can be easily changed
from 42 to 85 or 204 MHz with the use of field conversion kits. ACI’s patented DSIM advanced
technology keeps both the forward and return signals stable and reliable over extreme temperature
swings. Having return band stabilization over temperature has become much more important as
return band is increased to 204 MHz. Having the increased return gain of 28 dB enables these
amplifiers to drop into existing designs from 750 MHz to 1 GHz.
-
Drop-in 1.2G replacement RF modules for Motorola® Starline® MB Mini-Bridger and BLE Line Extender
-
Easy upgrade to 85/105 or 204/258 MHz return bandwidth.
-
-20.0 dB directional coupler test points
-
28 dB return gain
-
RoHS Compliant
-
Patented DSIM® Technology(programmable AGC)
-
Increased reliability with higher surge protection
-
DSIM controlled return band AGC
-
Pad adjustable forward and return EQ’s
-
DSIM Android & Apple iOS setup applications
BLE (1 Output Line Extender)
MB (2 or 3 Output Bridgers)
ASEM-MOTO BLE & MB DataSheet 1.2 GHz Rev J 221026 (PDF)
ASEM™ Complete Stations & RF Modules 1218 MHz For SA®/Cisco® GainMaker®
The ACI ASEM 1.2G RF upgrade modules that are compatible to the GainMakerⓇ amplifiers are designed to work up to a high forward output of 57 dBmV. The return bandwidth split can be easily changed from 42 to 85 or 204 MHz with the use of field conversion kits. ACI's patented DSIM advanced technology keeps both the forward and return signals stable and reliable over extreme temperature swings. Having return band stabilization over temperature has become much more important as return band is increased to 204 MHz. Having the increased return gain of 28 dB enables these amplifiers to drop into existing designs from 750 MHz to 1 GHz.
-
Drop-in 1.2G replacement RF modules for SA Sys II, III, and GainMaker®
-
Easy upgrade to 85/105 or 204/258 MHz return bandwidth.
-
20.0 dB directional coupler test points
-
28 dB return gain
-
Complete stations available
-
RoHS compliant
-
Patented DSIMⓇ Technology (Programmable AGC)
-
Increased reliability with higher surge protection
-
DSIM controlled return band AGC
-
Pad adjustable forward and return EQ's
-
DSIM Android & Apple iOS setup applications
ASEM-LE
ASEM-BT/HGD
ASEM-CISCO-UPGRADE-MODULES Datasheet (PDF)
LEA1 1002 MHz Amplifier
One or Two Output Line Extender
The LEA1 is a one or two output line extender amplifier. This amplifier provides high-quality RF distribution for HFC (Hybrid Fiber-Coaxial) or fiber deep networks. All amplifiers support two-way operation at various standard frequency splits available.
-
Operating bandwidth 1002 MHz
-
40-90 VAC cable power
-
-20 dB directional test points at the input and the output port and after the return signal amplifier
-
Pad Adjustable EQs & REQs
-
Attenuator pad & equalizer guides to aid in proper insertion of plug-ins
-
Two-way operation
-
10 Amp power passing
-
Compact size
LEA1-1002M-Amplifier Datasheet (PDF)
MFTJ
MultiFlex-J (MDU) Amplifier 1.2 & 1.8 GHz
The ACI Communications' MultiFlex-J Amplifier is specifically designed for use in vertical mount applications. It is ideal for apartment complexes or business high-rise situations. The housing is mounted vertically with the input and output ports on the bottom. The UL approved power supply is mounted inside the housing that eliminates the need to have an external transformer.
-
Adjustments for forward/reverse gain, input/output levels, and slope are easily accomplished with the use of plug-in JXP style attenuators pads and pad adjustable equalizers.
-
Pad adjustable forward and return equalizers that only require the JXP pad value to be changed for different slopes.
-
Forward slopes and levels are easily configured for 1002, 1218 or 1794 MHz.
-
Mounting is accomplished using easily accessible external tabs allowing a variety of placements in vented lock boxes or pedestals.
The amplifier is housed in a finned aluminum die-cast housing for superior heat dissipation. -
-20 dB directional coupler test points are provided in the forward path at both the input and output with separate test points in the reverse path.
-
RF connections are made through high performance SCTE compliant "F" type cable or 5/8" standard hard-line type cable connectors allowing the flexibility to place the unit on any type of cable.
-
Internal UL approved power supply - No need for an external transformer.
MFTJ DataSheet 1.2G & 1.8G Rev E 240221 (PDF)
ASEM™ Replacement Upgrade RF Modules 1218 MHz
For C-Cor™/Arris®
The ACI ASEM 1.2G replacement upgrade RF modules for C-Cor™/Arris® are designed to work up
to a high forward output of 57 dBmV. The return bandwidth split can be easily changed from 42 to
85 or 204 MHz with the use of field conversion kits. ACI’s patented DSIM advanced technology
keeps both the forward and return signals stable and reliable over extreme temperature swings.
Having return band stabilization over temperature has become much more important as return
band is increased to 204 MHz. Having the increased return gain of 28 dB enables these amplifiers
to drop into existing designs from 750 MHz to 1 GHz.
-
AFM2-T Trunk is compatible with Arris 901e FMT and is a 1G drop-in replacement for the C-Cor FNT700, FNT800, FNT900
-
AFM2-B Bridger is compatible with Arris 901e FMB and is a 1G drop-in replacement for the C-Cor FNB700, FNB800, FNB900
-
AFM2-L Line Extender is compatible with Arris/C-Cor FM331e and is a 1G drop-in replacement for the C-Cor E6 and E7 Line Extender
-
AFM2-E Line Extender is compatible with Arris/C-Cor 900 LE
-
Patented DSIM® Technology (programmable AGC)
-
DSIM controlled return band AGC
-
Easy upgrade to 85/105 or 204/258 MHz return bandwidth.
-
Pad adjustable forward and return EQ’s
-
Increased reliability with higher surge protection
-
DSIM Android & Apple iOS setup applications
-
RoHS Compliant
