光纖到家

GPON FTTX

4 Ports Outdoor EDFA integrated

with PON WDM

FTTH/GPON OLT

with 4 GPON Output Ports

FTTH/GPON ONT

Up 1.25Gbps / Down 2.5Gbps

FTTH/GPON OLT

with 2 Modular Service Slots

FTTH/GPON OLT

with 8 GPON Output Ports

FTTH/GPON ONT

Up 1.25Gbps / Down 2.5Gbps

FTTH/GPON OLT

with 6 Modular Service Slots

FTTH/GPON OLT

with 16 GPON Output Ports

光纖到家解決方案

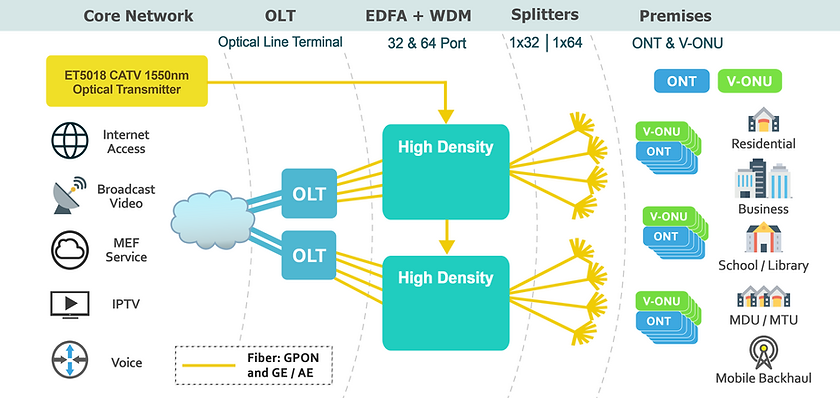

GPON FTTX Total Solution

因應寬頻網路服務的發展趨勢,隨選視訊 (HDTV on Demand)、寬頻電視 (Broadband TV)、網路遊戲、4K高畫質電視等影音服務日益普及,面對大數據浪潮來襲,光纖入戶甚至大大地影響未來熟齡人口的長照產業及遠距醫療等等。達運光電集團利用光纖網路穩定、超大頻寬且長距離的傳輸優點,做為「最後一哩」一步到位的最佳解決方案。無源光網路 (PON) 同時大大地簡化了網路設計規劃中對於尋找電源供應之困難,符合新時代節能環保的趨勢,也更進一步為人類未來生活創造了高度實現的可能性。

As a PON solution provider, TWOWAY Group has a full range of PON products including user expandable OLTs up to 96 ports. We carry the latest GPON and NGPON equipment including multi-port ONTs. Our PON solutions are expandable so there is no need to invest a large capital expenditure until needed giving users the best ROI possible. The customer premise equipment is a sleek modern design that consumers find attractive and provides all the options needed for the most flexibility, including an RF out if needed.

ACION GEH39

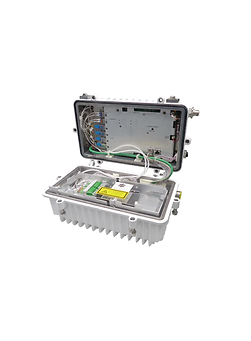

4 Ports Outdoor EDFA integrated with PON WDM
GEH39光工作站是完全室外型的機種,支援4埠GPON OLT與EDFA的光端口,並內建WDM混光器可應用於RF Overlay網路架構,適合安裝於現有的HFC網路,或是離頭端較遠之覆蓋區域及分散式網路設計。此設計讓使用者不須再建置任何的置箱,設備可放置在任何的室內及戶外環境,不受線路及地形的限制,讓網路佈建設計規畫更加自由,能夠以最大程度縮短產品初期投資及產品的上市時間。
The GEH39 is a 4-output port outdoor EDFA with an integrated 4-port GPON OLT module. The integrated WDM devices combine the GPON OLT IP signals of 1310 (upstream) and 1490 (downstream) with 1550 broadcasting signals in the same fiber for FTTX with an RF overlay network. The uplink wavelengths 1570 nm (upstream) and 1270 nm (downstream) can also pass thru to the OLT. A device management webpage is available for monitoring the station information and provides alarm functions in real-time that can be accessed through the RJ45 interface. A WiFi connection is available to access the local device management webpage by using a smartphone, tablet or laptop computer. The RJ45 interface can also be used for remote SNMP network management through an Ethernet connection.
  • A high-performance optical output driver circuit and laser TEC to provide a highly reliable EDFA
  • Built-in GPON OLT module
  • A built-in microprocessor allows the unit to monitor the system parameters
  • Built-in WDMs for GPON or XGPON optical signal integration
  • The pump laser auto shut down function at low input is available
  • Built-in device management webpage
  • Built-in RJ45 for remote SNMP network management
  • Built-in WiFi connection for local device management
  • Support remote firmware download and upgrade
  • Operating temperature: -20˚C to +65˚C (standard)
  • Built-in data log and up to 30-day operation history analysis (optional)
GEH39 Datasheet (PDF)

OLT - Optical Line Terminal
光纖線路終端產品系列
LT500 Series
隨著使用寬帶網路通訊、網路電話以及IPTV的網路服務持續增加,高性能網路設備的需求也相對的持續增加,這對於在人口密度較低且訂戶較少的地區也不例外,LT500系列是1RU單機式GPON OLT產品,最多可支援16個GPON端口,適合安裝於室外機櫃,提供更有彈性的建置方案,可以有效控制初期部署成本,也大幅縮短了上市所需的時間。LT500系列為小型的GPON OLT,可依照專案建置需求選擇4、8或16個GPON端口。每一台LT500都擁有4個1/10GBase-R 以及4個1000Base-T GE端口以供回傳上行訊號,非常適用於低密度及低成本的FTTX網路架構。LT500系列也支援Gigabit端口,可用於各種網路環境,同時也支援備援電源模組功能,提供不中斷的網路系統,提供更穩定的網路服務。

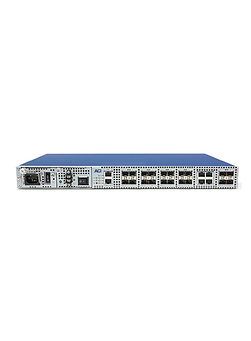

LT504
The LT504 is a compact GPON OLT system with 4 GPON output ports. The LT504 provides flexibility with 4 optical uplink ports (10GBase-T/1GBase-T) & 4 electrical uplink ports (100/1000 Base-T). This makes the LT504 and excellent solution to provide FTTx service to the areas that have a low density of population or a small number of subscribers with a low capital cost. The LT504 have plug-in module-type (AC or DC) power supplies, powering is redundant and hot-swappable. All configuration access is on the front panel making this unit very user-friendly. Reliable operation is increased through power redundancy that prevents the system from shutting down with a power supply failure. The LT504 has a module-type power supply, 10 Gigabit uplink ports (SFP+) and Gigabit uplink ports (100/1000Base-T), to cover a wide range of different applications.
  • 128 Gbps Switching Capacity
  • 4 GPON ports, 10GE 4 ports and GE (Electric) 4 ports
  • High Capacity Uplink/Service Interface 2.5 Gbps (down) / 1.25Gbps (up)
  • Easy to install
  • Cost-Effective
  • Modular-type power supply
  • Reliable FTTx service with a power redundancy system
  • Improved QoS and differential traffic service
  • IGMP support for IPTV applications
  • Fully Managed via ACI’s Network Management System
  • SNMP v2/v3 with RMON and Alarming
LT504 Datasheet (PDF)


LT508
The LT508 is a compact GPON OLT system with 8 GPON output ports. The LT508 provides flexibility with 4 optical uplink ports (10GBase-T/1GBase-T) & 4 electrical uplink ports (100/1000 Base-T). This makes the LT508 and excellent solution to provide FTTx service to the areas that have a low density of population or a small number of subscribers with a low capital cost. LT508 meets requirements for flexibility and reliability in a compact 1 RU footprint. The LT508 supports the module-type power supply (AC/DC), Powering is redundant and hot-swappable. All configuration access is on the front panel making this unit very user-friendly. Reliable operation and service are guaranteed through power redundancy, which prevents the system from shutting down at a power-related failure. The LT508 has a module-type power supply, 10 Gigabit uplink ports (SFP+) and Gigabit uplink ports (100/1000Base-T), to cover a wide range of different applications.
  • 128 Gbps Switching Capacity
  • 8 GPON ports, 10GigE (Optical) 4 ports and GigE (Electric) 4 ports
  • High Capacity Uplink/Service Interface 2.5Gbps (down) / 1.25Gbps (up)
  • Cost-Effective
  • Network and local access interface
  • IGMP support for IPTV applications
  • Modular-type power supplies
  • Reliable FTTx service with a power redundancy system
  • Improved QoS and differential traffic service
  • Fully Managed via ACI’s on-board Network Management System
  • SNMP v2/v3 with RMON and Alarming
LT508 Datasheet (PDF)

LT516
The LT516 is a compact 1 RU tall GPON OLT system with 16 GPON output ports. The LT516 provides flexibility with 4 optical uplink ports (10GBase-T/1GBase-T) & 4 electrical uplink ports (100/1000 Base-T). This makes the LT516 and excellent solution to provide FTTx service to the areas that have a low density of population or a small number of subscribers with a low capital cost. The LT516 have plug-in module-type (AC or DC) power supplies, powering is redundant and hot-swappable. All configuration access is on the front panel making this unit very user-friendly. Reliable operation is increased through power redundancy that prevents the system from shutting down with a power supply failure. The LT516 has a module-type power supply, 10 Gigabit uplink ports (SFP+) and Gigabit uplink ports (100/1000Base-T) that cover a wide range of different applications.
  • 168 Gbps Switching Capacity
  • 16 GPON ports, 10GE 4 ports and GE (Electric) 4 ports
  • High Capacity Uplink/Service Interface 2.5Gbps (down) / 1.25Gbps (up)
  • Easy to install
  • Cost-Effective
  • Modular-type power supply
  • Reliable FTTx service with a power redundancy system
  • Improved QoS and differential traffic service
  • IGMP support for IPTV applications
  • Fully Managed via ACI’s Network Management System
  • SNMP v2/v3 with RMON and Alarming
LT516 Datasheet (PDF)
OLT - Optical Line Terminal
光纖線路終端產品系列
LT800 Series
LT802
LT802是2RU單機式GPON OLT產品,最多可支援32個GPON端口,適合安裝於室外機櫃,提供更有彈性的建置方案,可以有效控制初期部署成本,也大幅縮短了上市所需的時間。LT802設計共有四片插槽,其中兩片插槽提供GPON服務,另外兩片插槽則提供上行傳輸以及網路交換功能,提供了更廣泛的FTTX應用。此高密度機架式OLT的32個GPON端口可支援多達4,096個住宅和商業用戶 (1:128分光比) 高密度服務、10GbE上行以及320 Gbps無阻塞交換結構。以完全備援的概念確保上行網路交換卡、電源卡及GPON服務卡等設備之可靠性,優良的性能設計、高度的相互支援及操作性,完整支援各項應用程式、各種服務以及各種不同的安裝環境。
The LT802 is a 2RU height chassis based GPON OLT system with 4 slots for 2 service modular units, 2 switching fabric unit with the uplink module to deliver a wide range of full-featured and high-performance
over FTTx applications. It is a high-density chassis system that supports up to 4,096 residential and business subscribers with 32 GPON ports (1:128 split ratio). The most compact type GPON OLT Chassis system as supporting GPON Protection in worldwide. LT802 features high capacity GPON access and 10GbE uplink and line-rate performance with a 320Gbps nonblocked switch fabric. The LT802 is ready for XG-PON service, the service line supports the fully 8 ports of XG-PON signal as the same chassis. LT802 guarantees a high level of equipment-level reliability with full the redundancy design concept of SFU/Power/GPON units. The PON technology adds new features and functionality targeted at improving performance and interoperability and adds support for new applications, services, and deployment scenarios.
  • 32 GPON ports per chassis (16 Port per unit)
  • Ready for 16 XG-PON ports per chassis (8 Port per unit)
  • 4 x 10GE/GE Uplink (Selectable) per slot
  • Multi-service chassis for FTTx deployments with full redundancy
  • Support/delivery of various service types
  • VoIP, IP-TV, high-speed internet, mobile, etc.
  • Non-stop forwarding, Non-stop routing features based on a distributed architecture
  • Selective service/uplink modular units for flexible network
  • High capacity GPON access and 10GbE uplink and line-rate performance
  • Realtime network traffic monitoring
  • SNMP v2/v3 with RMON, Alarms
  • L2/L3/L4 classification / Priority management
LT802 Datasheet (PDF)


LT806
LT806是一款高度6RU的機架式GPON OLT產品,由6片服務卡、2片網路切換卡和2片上行網路卡所組成,是一款支援FTTX全應用功能的高性能機種。此高密度OLT共有96個GPON端口可為高達12,288 個家庭或企業提供網路服務 (1:128分光比),LT806提供高密度的GPON 服務、10GbE上行以及 960 Gbps無阻塞交換結構。以完全備援的概念確保上行網路交換卡、電源卡及GPON服務卡等設備之可靠性,優良的性能設計、高度的相互支援及操作性,完整支援各項應用程式、各種服務以及各種不同的安裝環境。
The LT806 is a 6RU height chassis based GPON OLT system which is comprised of 10 slots for 6 service modular slots, 2 switching fabric slots and 2 uplink slots for delivering a wide range of full-featured and high-performance over FTTx applications. It is a high-density chassis system that supports up to 6,144 residential and business subscribers with 96 GPON ports (1:64 split ratio). The most compact type GPON OLT chassis system supporting GPON protection worldwide. LT806 features high capacity GPON access and 10GbE uplink and line-rate performance with a 960 Gbps non-blocked switch fabric. The LT806 is ready for XG-PON services, the service line card fully supported by 8 ports of XG-PON signal in the same chassis. LT806 guarantees equipment-level reliability with the full redundancy design concept for all SFU / Power / GPON modules. The PON technology adds new features and functionality targeted at improving performance and interoperability and adds support for new applications, services, and deployment scenarios.
  • 96 GPON ports per chassis (16 Port per Unit)
  • Ready for 48 XG-PON ports per chassis (8 Port per Unit)
  • 4 x 10GE/GE Uplink (Selectable) per slot
  • Multi-service chassis for FTTx deployments with full redundancy
  • Support/delivery of various service types
  • Non-stop forwarding, Non-stop routing features based on a distributed architecture
  • VoIP, IP-TV, high-speed internet, mobile, etc.
  • Selective service/uplink modular units for flexible network
  • High capacity GPON access and 10GbE uplink and line-rate performance
  • Realtime network traffic monitoring
  • Common & CLI via console/telnet
  • SNMP v2/v3 with RMON, Alarms
  • L2/L3/L4 classification / priority management
LT806 Datasheet (PDF)
ONT - Optical Network Terminal
光纖網路終端產品系列
NU60 Series
NU60GM
為了實現在FTTX以及FTTP網路平台上,同時提供網際網路服務 (含數據與加值應用)、電視視訊服務及電信語音服務 (Triple-play Services),NU60GM提供了一個最佳的解決方案,它不但具有高度的設備相容性,同時也能控制各項專案的成本,能夠充分地滿足不同客戶的需求。NU60GM提供了一個GPON上行端口、4個GE端口(10/100/100Base-T)、兩個FXS語音端口能夠大幅強化VoIP功能。此產品具備Wi-Fi 802.11 a/b/g/n及802.11ac雙頻無線網路,同時完整支援Triple-play各種服務,可以結合並簡化家庭的聯網設備。NU60GM符合ITU-T G.984的2.5G下行及1.25G的上行頻寬之規範,內建L2網路切換及L3路由網關,並具備端口轉發功能、支援PPPoE、NAT和NAPT地址轉換,為客戶提供完整的高速上網環境。
TThe NU60GM optical network terminal is targeted for subscribers requiring multiple POTS, RF interface, and high-speed data interfaces in cost-effective indoor housing. Fully compliant with ITU-T G.984 standards, the NU60GM supports data rates of 1.25Gbps upstream and 2.5Gbps downstream. With ACI’s leading-edge GPON technology, users can enjoy bandwidth-intensive multimedia services such as real-time audio, video, and gaming much easier and faster than ever before. The NU60M provides one GPON uplink port, four Gigabit Ethernet (10/100/1000Base-T) ports, Wireless LAN interface, one RF out the interface and two FXS voice ports that enhance the ability to deliver demanding data/Wi-Fi/video/VoIP services. The NU60GM uses Session Initiation Protocol (SIP) to terminate VoIP calls so that in-home wiring does not change, and standard telephone sets may be used. The NU60GM supports full triple-play services including voice, video and high-speed Internet access services. The NU60GM contains both built-in wire-speed L2 switch and L3 routing gateway with port forwarding, NAT and NAPT address translation, PPPoE client support for high-speed Internet service.
NU60GM Datasheet (PDF)

NU60RM
為了實現在FTTX以及FTTP網路平台上,同時提供網際網路服務 (含數據與加值應用)、電視視訊服務及電信語音服務 (Triple-play Services),NU60RM提供了一個最佳的解決方案,它不但具有高度的設備相容性,同時也能控制各項專案的成本,能夠充分地滿足不同客戶的需求。NU60RM提供了一個GPON上行端口、4個GE端口(10/100/100Base-T)、兩個FXS語音端口能夠大幅強化VoIP功能。此產品具備Wi-Fi 802.11 a/b/g/n及802.11ac雙頻無線網路,同時完整支援Triple-play各種服務,可以結合並簡化家庭的聯網設備。NU60RM符合ITU-T G.984的2.5G下行及1.25G的上行頻寬之規範,內建L2網路切換及L3路由網關,並具備端口轉發功能、支援PPPoE、NAT和NAPT地址轉換,為客戶提供完整的高速上網環境。
The NU60RM optical network terminal is targeted for all subscribers requiring multiple POTS, RF interface, and high-speed data interfaces in cost-effective indoor housing. Fully compliant with ITU-T G.984 standards, the NU60RM supports data rates of 1.25Gbps upstream and 2.5Gbps downstream. With ACI’s leading-edge GPON technology, users can enjoy bandwidth-intensive multimedia services such as real-time audio, video, and gaming much easier and faster than ever before. The NU60RM provides one GPON uplink port, four Gigabit Ethernet (10/100/1000Base-T) ports, Wireless LAN interface, one RF out the interface and two FXS voice ports that enhance the ability to deliver demanding data/Wi-Fi/video/VoIP services. The NU60RM uses Session Initiation Protocol (SIP) to terminate VoIP calls so that in-home wiring does not change, and standard telephone sets may be used. The NU60RM supports the full triple play of services including voice, video and high-speed Internet access services. The NU60RM contains both built-in wire-speed L2 switch and L3 routing gateway with port forwarding, NAT and NAPT address translation, PPPoE client support for high-speed Internet service.
NU60RM Datasheet (PDF)
