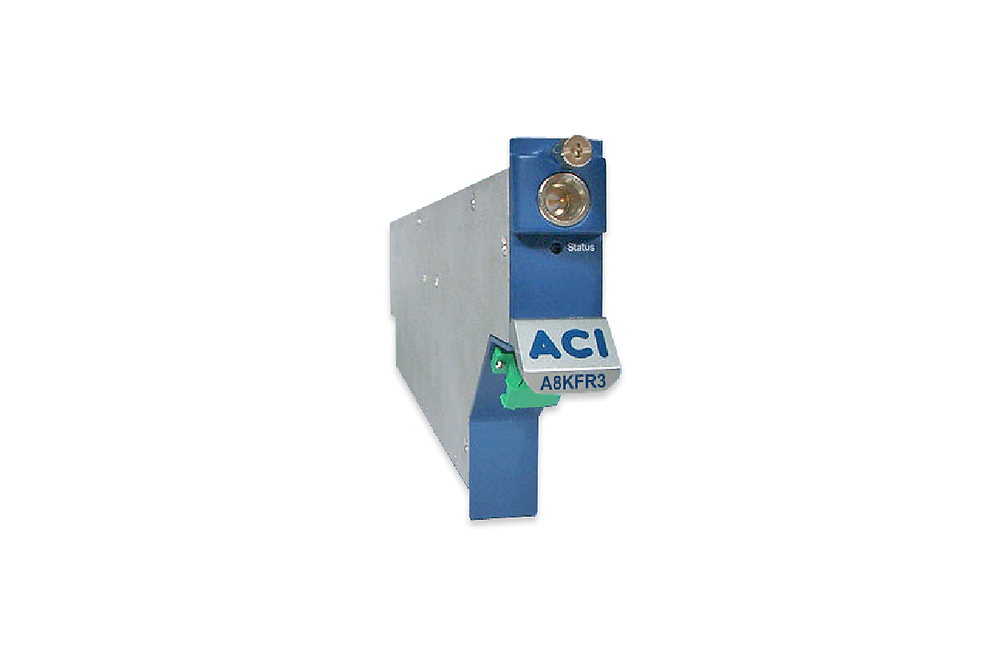

A8KFR3

Forward Optical Receiver

/Overview/


ACI’s A8KFR3 1GHz is an advanced Forward Optical Receiver designed for HFC network, with high reliability, scalability, low input optical power and cost-effectiveness. The A8KFR3 has wide range of operation wavelength from 1260 to 1620nm. In multi wavelength CWDM or DWDM application, the capacity of the HFC network can be increased substantially without installing new optical fiber. The module is hot-swappable with integrated management through A8KPCM and remote management by HMS SNMP.


/Features/

  • Bandwidth 50MHz ~ 1GHz

  • Input Wavelength CWDM 1260 ~ 1620nm

  • Hot-swappable

  • Remote monitor and control function by HMS SNMP

  • RF test point on front panel

  • Optical Connector: SC/APC with shutter(standard), FC/APC or E2000/APC (optional)


/Applications/


A8KFR3 ENG Rev A 20140117
.pdf
PDF • 298KB
